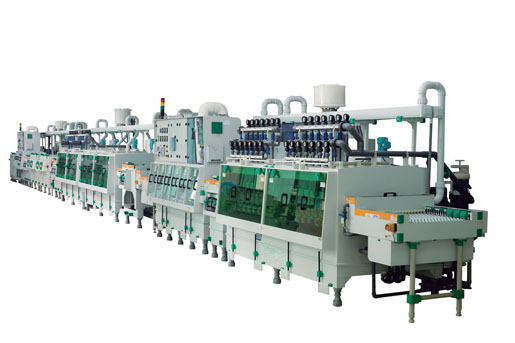

Small PCB DES(Develop,Etch,Strip) Production Line
Features: small PCB DES(Developing,Etching,Stripping) Production Line for double-sided or multi layer PCB or thin copper etching uses with high precision.
Process flow: Load → Developing → water Washing → Blot up →checking → Etching → Water Washing→ Checking →Stripping1 → Washing → Blot Up → Unload
Main technical parameter:
Model:GE-S400 serial
Power:380V/50HZ
Working width:400mm
Working height:850mm (+/50mm adjust)
Min / Max board size:50*50mm / 400mm*L
Etching system:Double Spray with Oscillate system
Workpiece thickness:0.2~3.2mm
Working Temperature:0~65 ℃
Conveyor Speed:0.5～6m/min
Heater/Cooling Pipe :Titanium Pipe
Automatic Control System:
Working Speed Adjust system
Pressure Adjust System
Temperature control System
High temperature (up to 100) resists German PP material
Product Image Details
Transport Conveyor with Wheels, Rollers
pressure control
oscilation system
Pressure gauge & pump
